Martin Audio loudspeakers are combined with Astro Spatial Audio software and processing technology to unite your audience in an unparalleled immersive 3D sound field.

Utilizing patented acoustic technology, the result is scalable and easy to operate. Fully object-based immersive audio provides new creative options for live performances and theaters worldwide, as well as installations in a variety of venues.

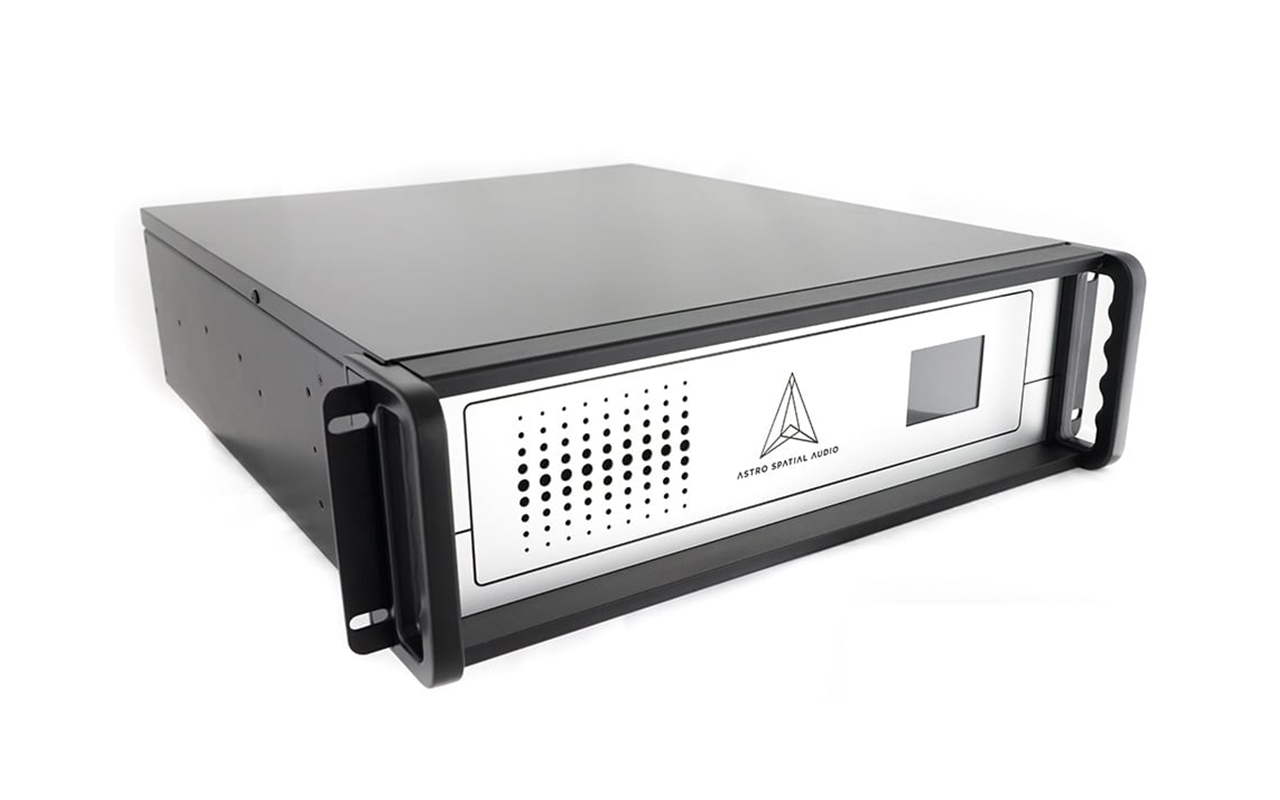

SARA II:

The SARA II Advanced Rendering Engine utilizes Spatial Sound Wave (SSW) technology to enable end users to access complex, immersive audio that is fully object-based.

Audio and Control

Audio Input: Standard 32 channels (expandable)

Audio Output: Standard 64 channels (expandable)

Sample Rate: 24 bit @48 kHz

Delay: <5 ms

External Control: Open Sound Control Protocol (OSC) Supports MIDI, RS232, and GPIO

Front Skin Display: 2.8 "TFT LCD Color Touch Screen

Standard: MADI, 1 x Fiber (SC), and Coaxial (BNC)

Optional: Dante ™, 1 x RJ45 Gigabit Ethernet LAN Port

Word Clock: Optional Internal/External (BNC)

Network Port: 1 x Gigabit Ethercon Neutrik NE8

Maintenance Use Only: 1 x VGA, 1024 x 768 or higher

2 x USB3.0, 1 x RJ45 Gigabit Ethernet

Storage

Memory: 16 GB

Internal Memory: 2 x 120GB Solid State Drive

Redundancy: RAID 1 SSD ( Built-in)/Optional Parallel SARA II Engine

Power Supply

Input Voltage: 100 - 240Vac, 50-60Hz, Max 6.3A

Maximum Output: 450W

Interface: Neutrik PowerCon NAC3MPA-1

Optional: Redundant PSU, 2 x 500W, 8A with Acoustic and Optical Warning

Conventional

Housing: 19

Dimensions (WxDxH): 482 x 550 x 132mm

Weight: 11.9kg (26lbs) plus cable

Operating System: Linux CentOS
