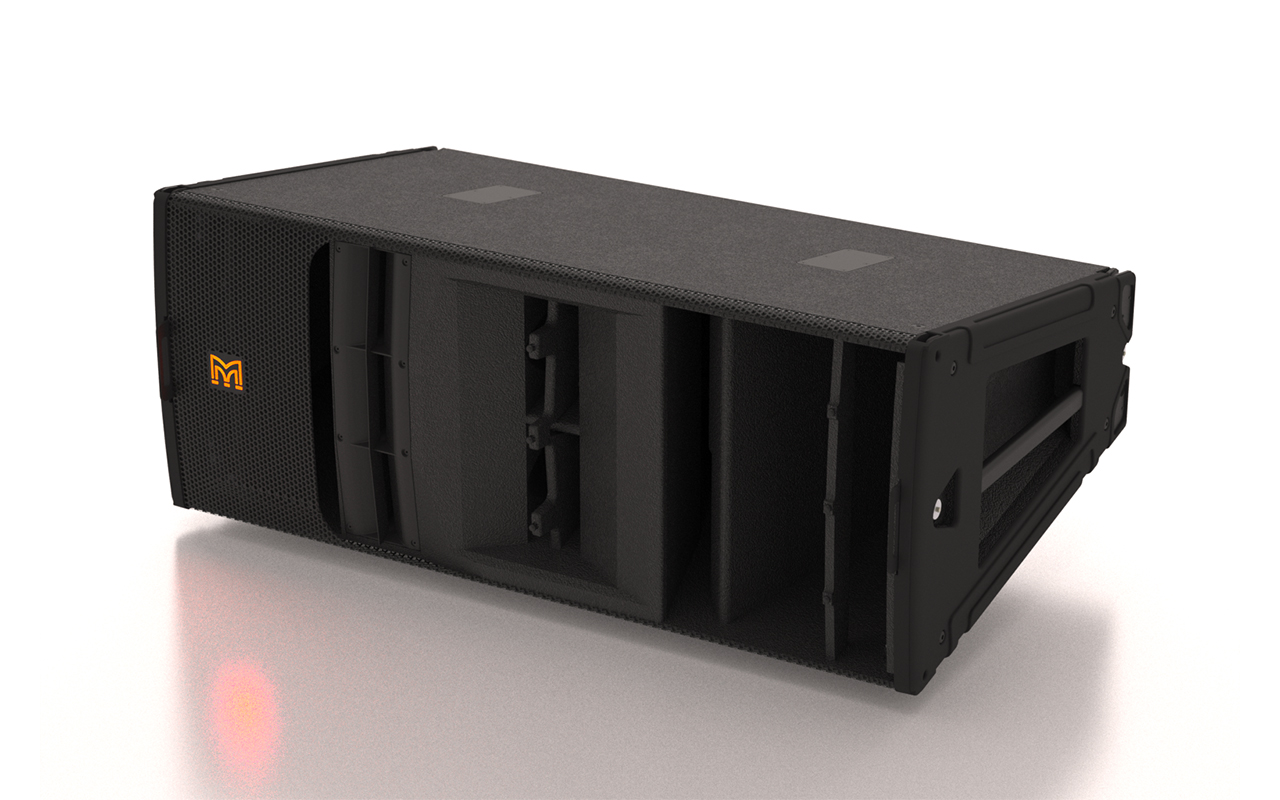

To match the performance and tonal balance of the MLA, the MLD has been designed around the same sound formats and electronic originals. A coherent array of MLA and lower-zone complements can be easily constructed to seamlessly cover the listener area. The lower-zone complements of the MLD are an essential part of the MLA system. Maximizing coverage and efficiency of the entire array of lines is achieved by using only one (or up to two) downwards to cover the front listener.

Speaker Type: Three-way Cellular Drive Unit, Active Array Assembly

Frequency Response: 52Hz-18kHz, ± 3dB

Maximum Sound Pressure Level: LF: 133dB (continuous), 139dB (peak); MF: 133dB (continuous), 139dB (peak); HF: 134dB (continuous), 140dB (peak)

Drive Unit: LF: 2 x 12 " (300mm)/3" (75mm) Voice Coil, Extra Long Stroke, Neodymium Magnetic Drive Unit, Trumpet Loaded Hybrid ® Bass

MF: 2 x 6.5 " (165mm)/2" (50mm) Voice Coil, Neodymium Magnetic Drive Unit, Trumpet Loaded

HF: 3 x 1 " (25mm) Outlet Neodymium Magnetic Compression Drive Unit, Trumpet Loaded

Rated Power: LF: 800W (AES), 3200W (Peak); MF: 400W (AES), 1600W (Peak); HF: 150W (AES), 600W (Peak)

Coverage Angle: Horizontal 120º (-6dB), 140º (-10dB); Vertical 20 °

Cross Frequency: 320Hz: 8th Order Linkwitz-Riley Filter; 4kHz: Vanishing Point ™ FIR Filter

Audio Input Interface: XLR Female Input, XLR Male Link Output

Analog Input Impedance: 20kΩ (balanced ground)

Maximum Analog Input Level: 6.15Vrms (+ 18dBu), Overvoltage Protection

Nominal System Gain: 28.5dB

AES/EBU Impedance: 110Ω (balanced), Receiver and Transmitter

Network Interface: 2 x IP68 Class 8-pin Interface, Fast Release

Network Protocol: U-NET

Power Amplifier Module Type: 6-Channel Class D Amplifier, Fixed Frequency

Amplifier Module Peak Output Power: 6000W

Amplifier Module Average Efficiency: 75%

Amplifier Module Cooling: 4 x Built-in Temperature Controlled Fan, 1 x Built-in Low Speed Blower, 1 x External Temperature Controlled Fan

Amplifier Module Maximum Ambient Temperature: Full Power Output 45 ° C (113 ° F)

Power Type: Switch Mode, Fixed Frequency PFC

AC Input Operating Range: 100 - 240V~ AC, 50 - 60Hz

Nominal Power Consumption: 900W

Power Interface: 16A IEC309 (Ceeform) - IP44 Rating

Case: Vertical trapezoid with 10 ° wall angle, multi-layer birch and poplar layer construction

Topcoat: Black PU textured coating

Mesh cover: Black HEX porous steel mesh

Accessories: proprietary rigging system; handles on both sides; protective rubber side panels with anti-skid pads; wheel plates; transport cover; windshield

IP rating: IP 24

Dimensions (W × H × D): 1136mm x 454mm (458mm), With wheel plate) x 680mm (840mm, with wheel plate)

Weight (without wheel plate): 91.5kg (201 lbs)
