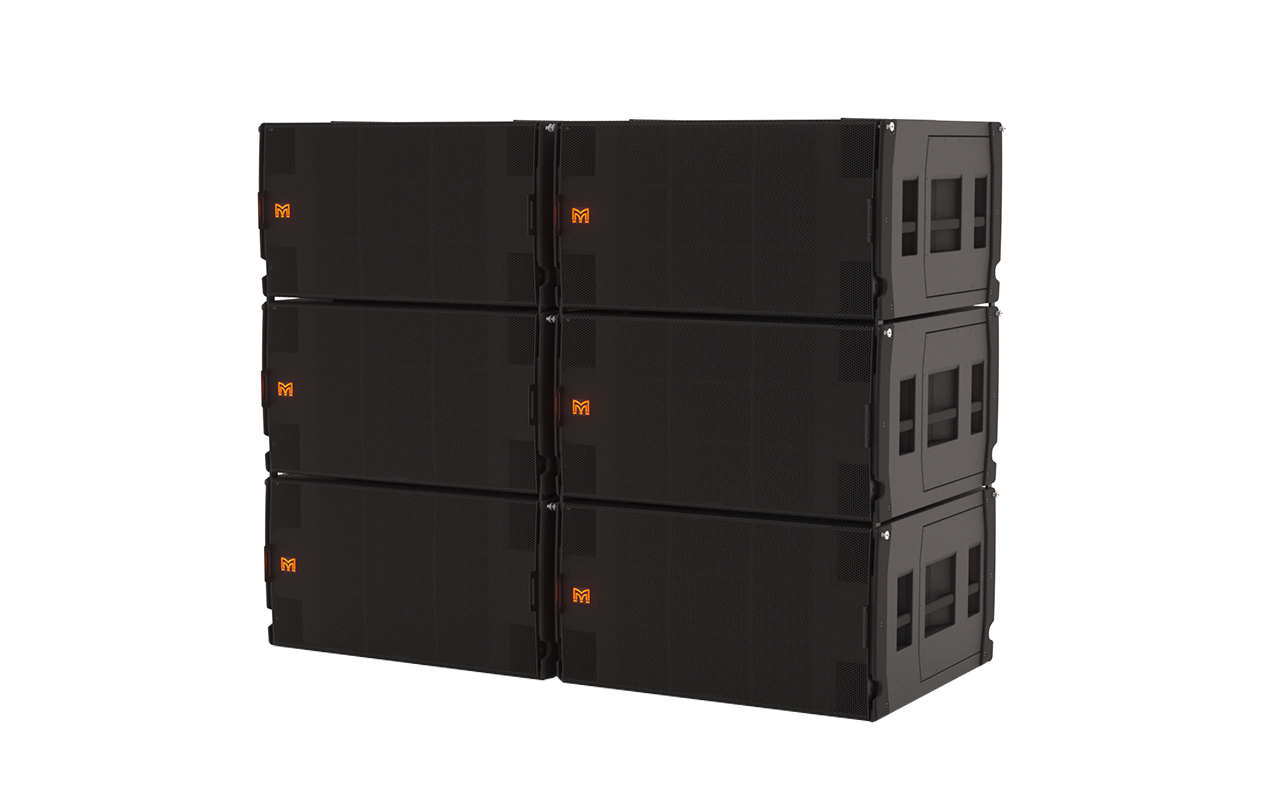

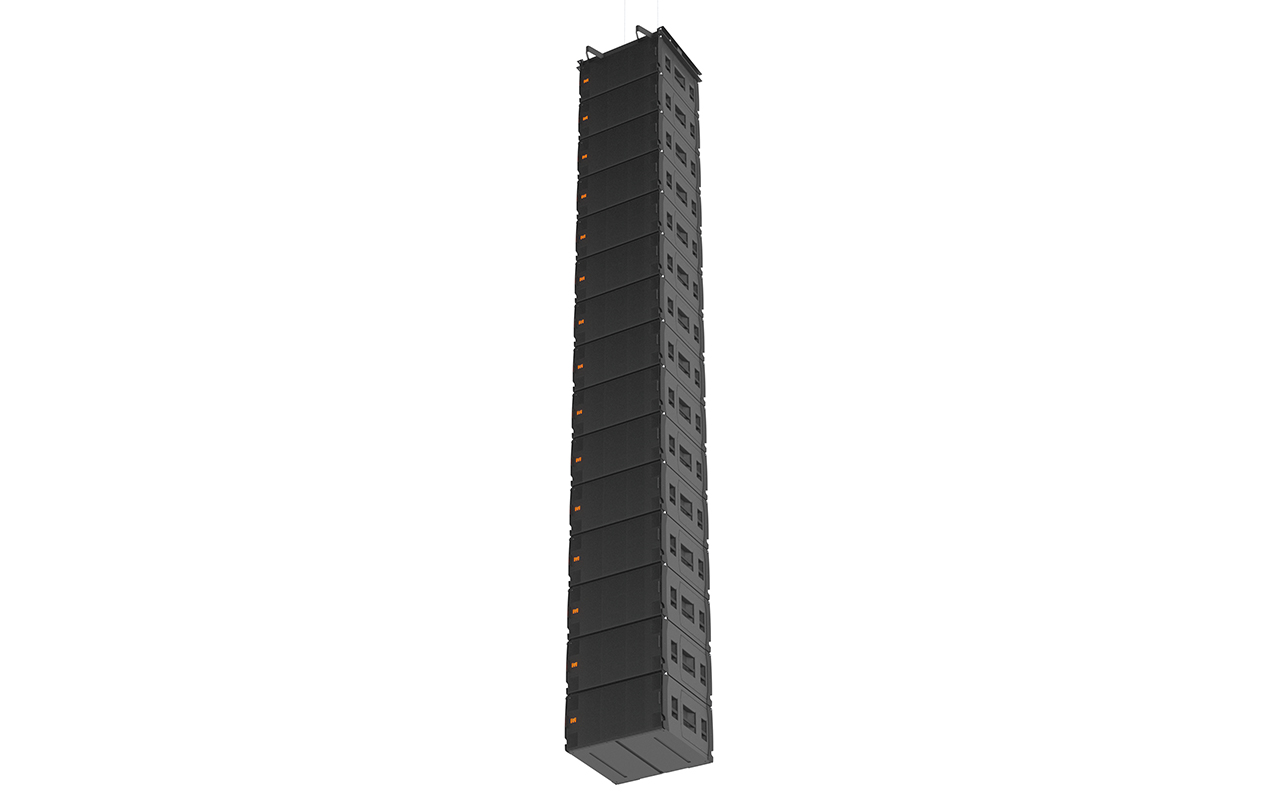

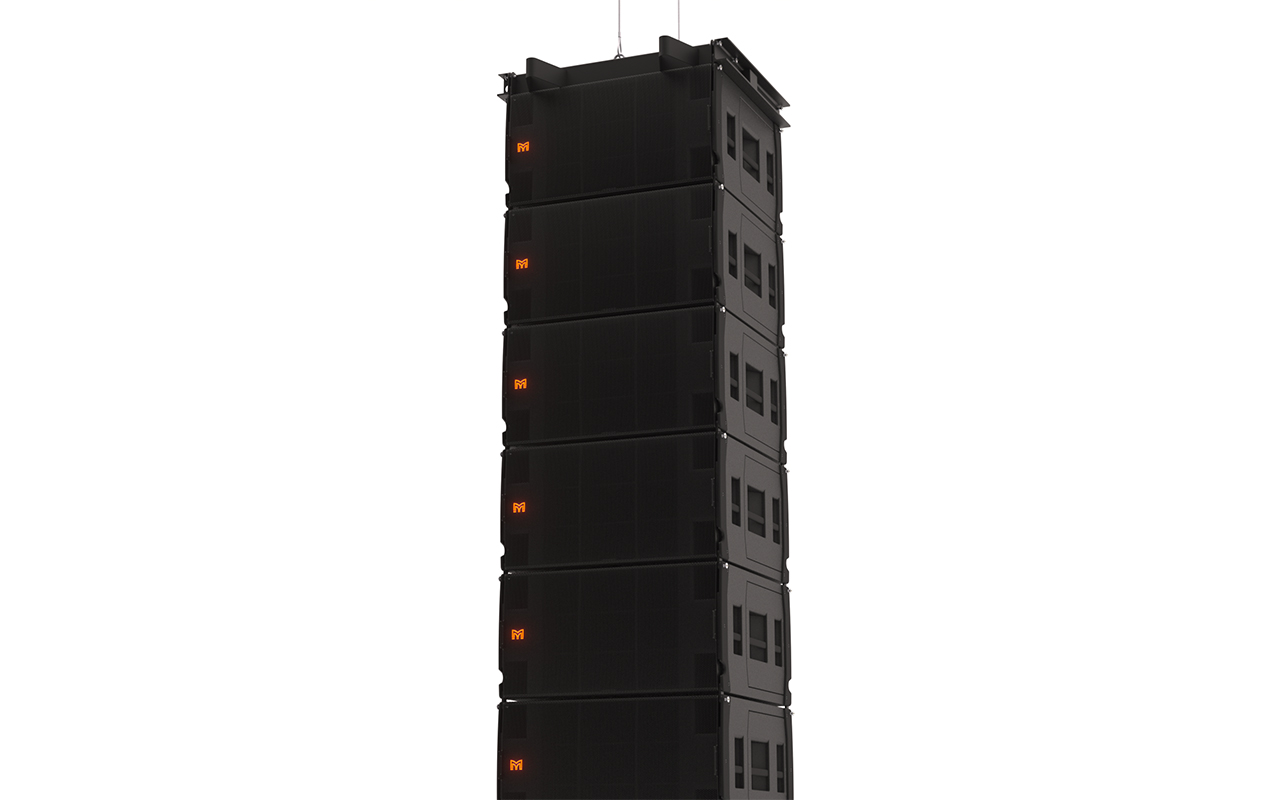

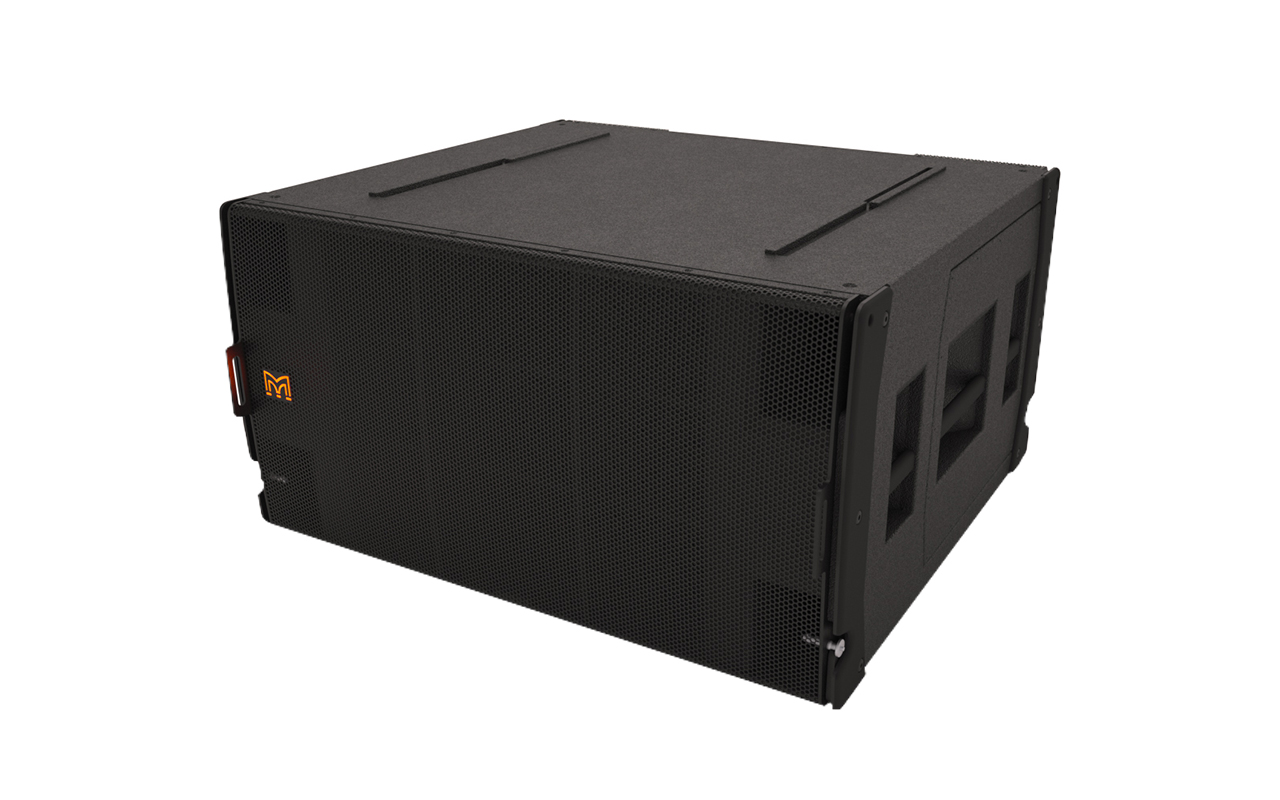

The MLX is an ultra-high-performance subwoofer with onboard amplification, DSP, and networking capabilities. Delivering over 150dB peak output at 1m, it is a subwoofer for large touring shows. Achieve best-in-class output levels by combining Hybrid ® horn/reflective load with IPAL drive amplifier technology. The hybrid load of two 18-inch (460mm) neodymium magnetic drive units perfectly balances low-frequency expansion with stunning bass. MLX speakers are designed to be suspended or stacked on the ground, and a combination of forward and backward speaker stacks can be configured as an array of subwoofers with directional characteristics. The audio setup of the MLX can be controlled box-by-box or as a full array via the VU-NET network with its intuitive graphical interface. The MLX's built-in Class D amplifier provides a total peak output of 8500W. Amplifiers, power and control electronics are housed in a field-replaceable fan cooling module designed to withstand a wide variety of environmental conditions (e.g. rain and high temperatures) common in live sound applications. The MLA System Hangers can suspend up to 15 MLXs.

Sound Type: Hybrid ® Trumpet/Reflective Ultra Low Speaker

Frequency Response: 35Hz-150Hz, ± 3dB

Maximum Sound Pressure Level: 140dB (Continuous), 150dB (Peak)

Drive Unit: 2x18 "/4.5" (115mm) Voice Coil, Extra Long Stroke, High Efficiency Neodymium Magnetic Unit

Rated Power: 3000W (AES), 12000W (Peak)

Coverage Angle: Array Digital Control

Audio Input Interface: XLR Female Input, XLR Male Link Output

Analog Input Impedance: 20kΩ (balanced ground)

Maximum Analog Input Level: 6.15Vrms (+ 18dBu), Overvoltage Protection

AES/EBU Impedance: 110Ω (balanced), Receiver and Transmitter

Network Interface: IP68 Class 8-Pin Interface, Fast Release

Network Protocol: U-NET

Power Amplifier Module Type: Single Channel Class D Amplifier, Fixed Frequency

Power Amplifier Module Peak Output Power: 8500W

Power Amplifier Module Average Efficiency: 85%

Power Amplifier Module Cooling: 2 x Built-in Temperature Controlled Fans, 1 x Built-in Low Speed Blower, 1 x External Temperature Controlled Fans

Power Amplifier Module Maximum Ambient Temperature: Full Power Output 45 ° C (113 ° F)

Power Supply Type: Switch Mode, Fixed Frequency PFC

AC Input Operating Range: 100 - 240V~ AC, 50 - 60Hz

Power Factor: > 0.95

Nominal Power Consumption: 600W

Power Interface: 16A IEC309 (Ceeform)

Case: Widely Supported, Multi-Layer Birch

Topcoat: Black PU Textured Coating

Mesh Cover: Black HEX Porous Steel Mesh

Accessories: Proprietary Rigging System; Protective Rubber Side Plate with Anti-Slip Pad; Wheel Plate; Transport Cover; Windshield

Dimensions (W × H × D): 1126mm x 607mm (607mm with Wheel Plate) x 1027mm (1200mm with Wheel Plate)

Weight (without Wheel Plate): 160kg (352lbs) )
