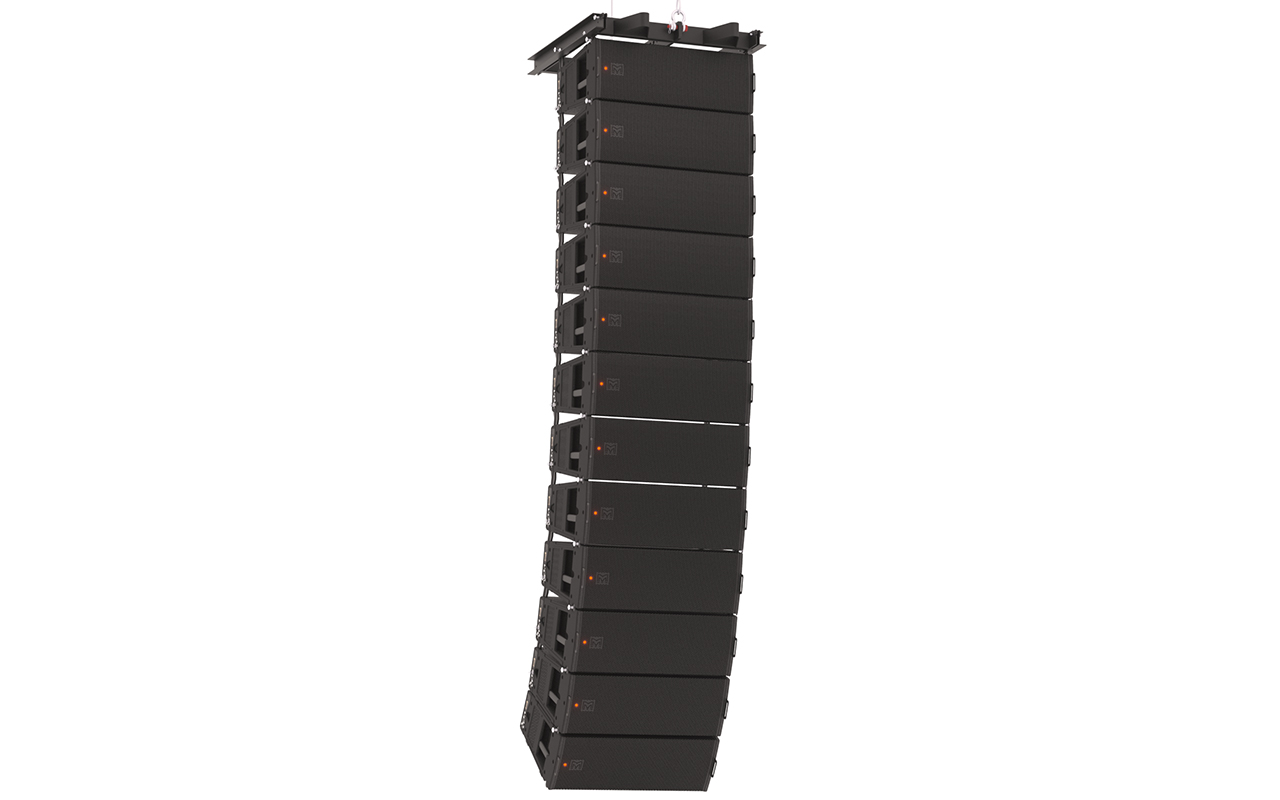

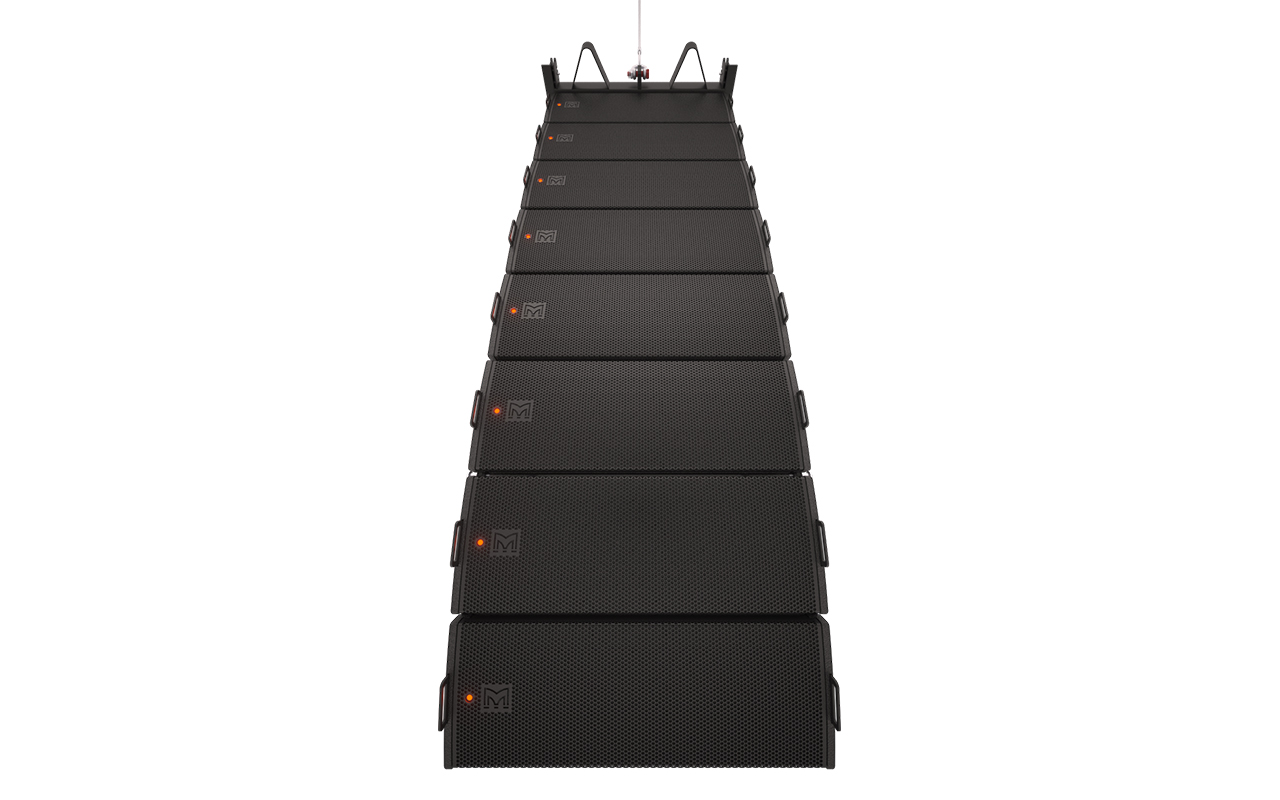

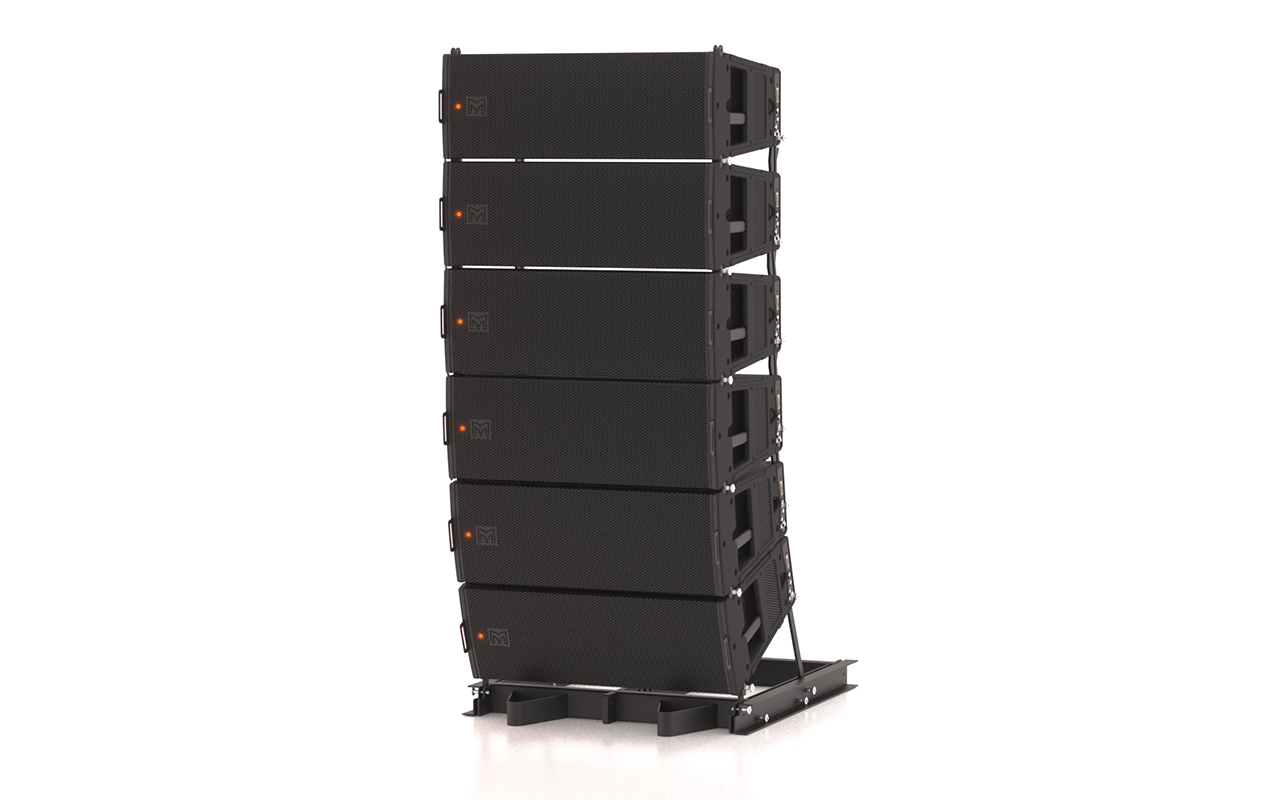

Martin Audio's revolutionary multi-cellular loudspeaker arrays are reshaping the way loudspeaker arrays are configured and controlled, providing unparalleled listener coverage and consistency without compromising fidelity. MLA Compact brings this revolutionary technology to mid-size touring and advanced fixed installation applications, from concert halls to chapels. Versatile and scalable, MLA Compact delivers performance, control, and coverage consistency that brings sound engineers and listeners together for a more powerful experience. In the simplest terms, each MLA Compact array has up to 120 independent acoustic units, each with its own on-board amplifier and DSP, which can be optimized by software to deliver sound to the audience, thus meeting the sonic goals required for any space.

Young Speaker Type: Three-way Cellular Drive Unit, Active Array Component

Frequency Response: 65Hz-18kHz, ± 3dB

Maximum Sound Pressure Level: LF: 129dB (continuous), 135dB (peak); MF: 129dB (continuous), 135dB (peak); HF: 129dB (continuous), 135dB (peak)

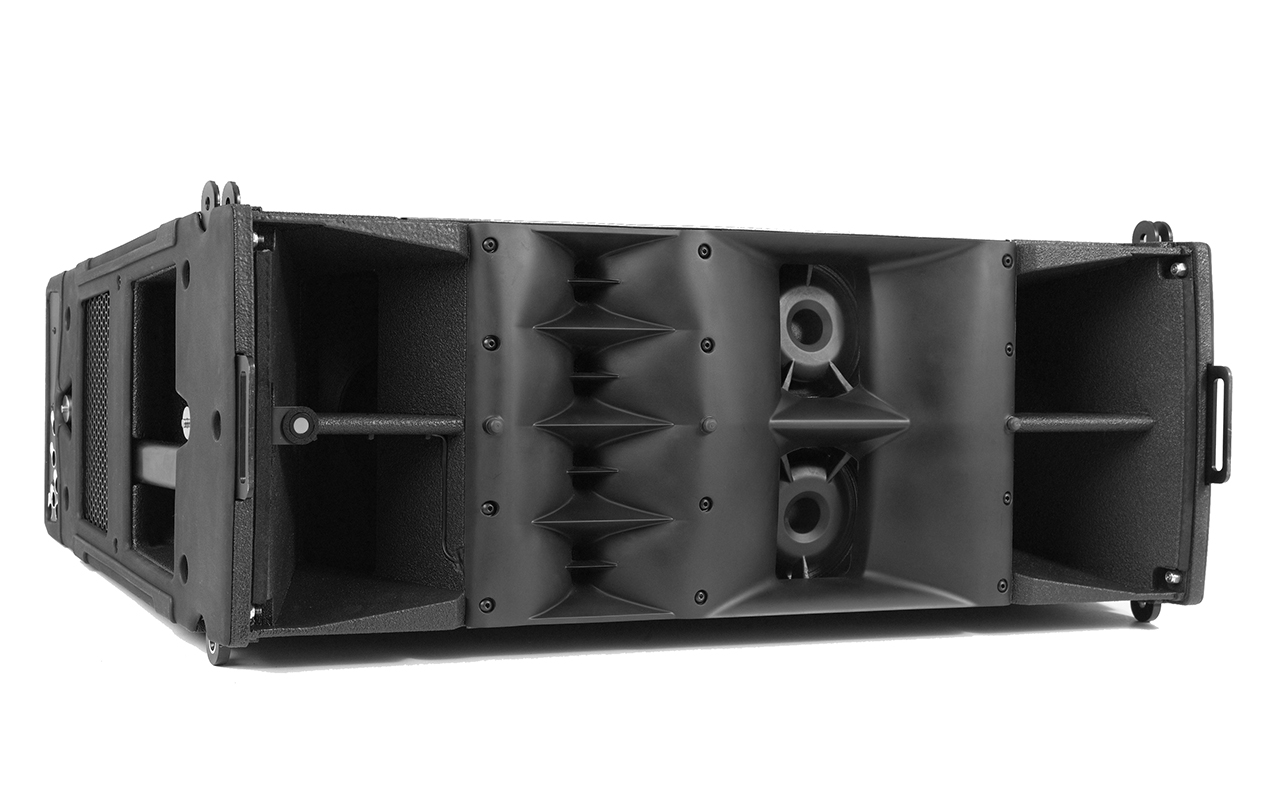

Drive Unit: LF: 2 x 10 " (250mm)/2.5" (63mm) Voice Coil, Extra Long Stroke, Open Support Design , Neodymium Magnetic Drive Unit, Slot Trumpet Loaded Hybrid ® Bass

MF: 2 x 5 " (125mm)/1.5" (38mm) Voice Coil, Neodymium Magnetic Drive Unit, Trumpet Loaded

HF: 4 x 0.7 " (19mm) Outlet Neodymium Magnetic Compression Drive Unit, Trumpet Loaded

Power Rating: LF: 500W (AES), 2000W (Peak); MF: 180W (AES), 720W (Peak); HF: 40W (AES), 160W (Peak)

Coverage Angle: Horizontal 100º (-6dB), 130º (-10dB); Vertical 10 °

Crossover Point: 400Hz: 8th Order Linkwitz-Riley Filter, 4.25kHz: Vanishing Point ™ FIR Filter

Audio Input Interface: XLR Female Input, XLR Male Link Output

Analog Input Impedance: 20kΩ (balanced ground)

Maximum Analog Input Level: 6.15Vrms (+ 18dBu), Overvoltage Protection

Nominal System Gain: 22dB

AES/EBU Impedance: 110Ω (balanced), Receiver and Transmitter

Network Interface: 2 x IP68 Class 8-Pin Interface, Fast Release

Network Protocol: U-NET

Power Amplifier Module Type: 5-Channel Class D Amplifier, Fixed Frequency

Power Amplifier Module Peak Output Power: 4200W

Power Amplifier Module Average Efficiency: 78%

Power Amplifier Module Cooling: 2 x Built-in Temperature Controlled Fans, 1 x External Temperature Controlled Fans

Power Amplifier Module Maximum Ambient Temperature: Full Power Output 45 ° C (113 ° F)

Power Supply Type: Switch Mode, Fixed Frequency PFC

AC Input Operating Range: 100 - 240V~ AC, 50 - 60Hz

Power Factor: > 0.95

Nominal Power Consumption: 900W

Power Interface: 16A IEC309 (Ceeform) - IP44 rating (IP67 rating when used with the power distribution equipment included with the system)

Cabinet: Vertical trapezoid with a wall angle of 5 °, multi-layer birch and poplar layer construction

Topcoat: Black PU textured coating

Mesh cover: Black HEX porous steel mesh

Accessories: Proprietary rigging system; handles on both sides; protective rubber side panels with anti-skid pads; windshield

IP Rating: IP 25

Dimensions (W × H × D): 788mm x 280mm x 500mm

Weight: 49.5kg (109 lbs)
