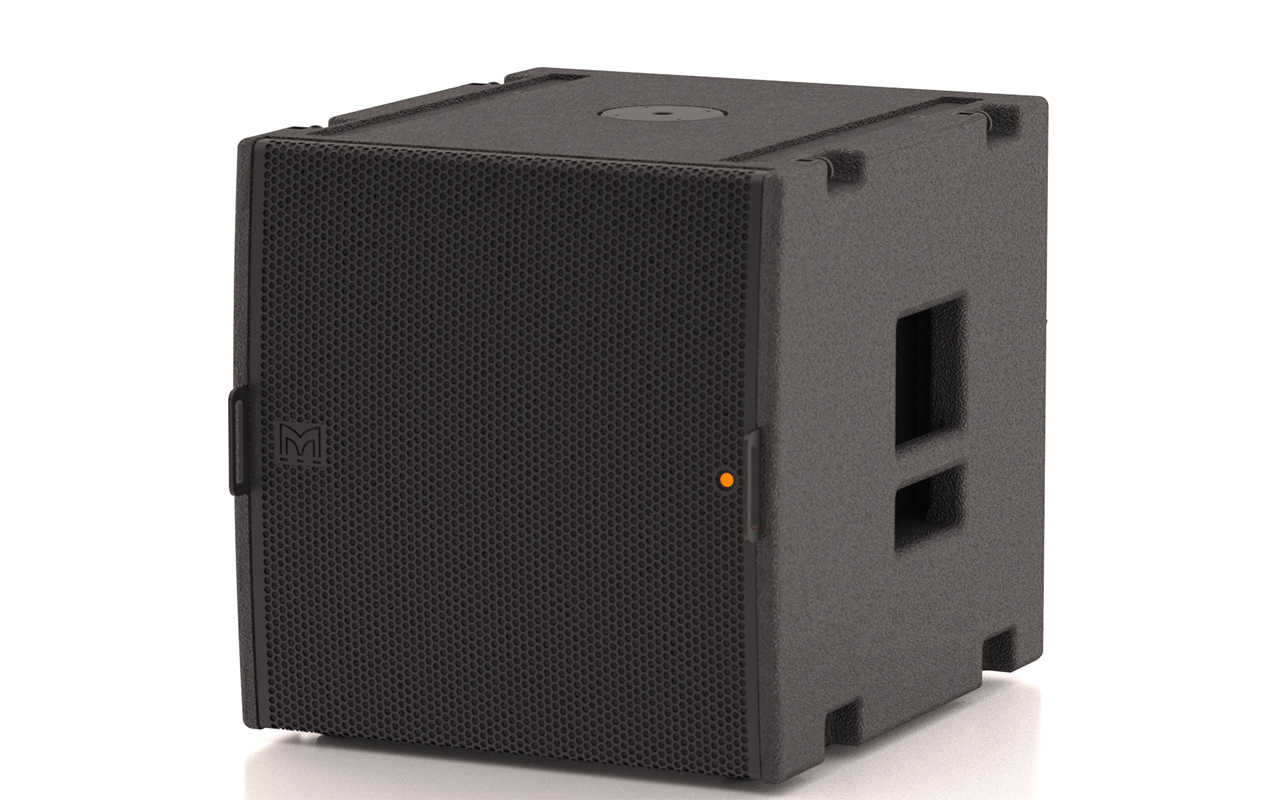

The MLA Mini full-range line array and MSX can be controlled remotely over a U-NET ™ network. Small systems (e.g. configurations of 4 MLA Minis and 1 MSX) can be set up to plug and play without external controls and call on-board presets via a rear skin selector switch. The MSX is the same width as the MLA Mini and can be integrated into a hanging array or stacked separately. It features a 15 " (380 mm)/4" (100 mm) voice coil with a reflective drive unit mounted in a very compact housing. For full installation versatility, its subwoofer amplifier channel can be used to power the MSX or the alternative Martin Audio 4Ω passive subwoofer. For optimal bass performance, the MLA Mini/MSX combination is available for use with an active DSX subwoofer.

Speaker Type: 15 "Reflective Loaded Ultra Low Speaker

Frequency Response: 50Hz-150Hz, ± 3dB (-10dB@42Hz)

Maximum Sound Pressure Level: 133dB (Continuous), 136dB (Peak)

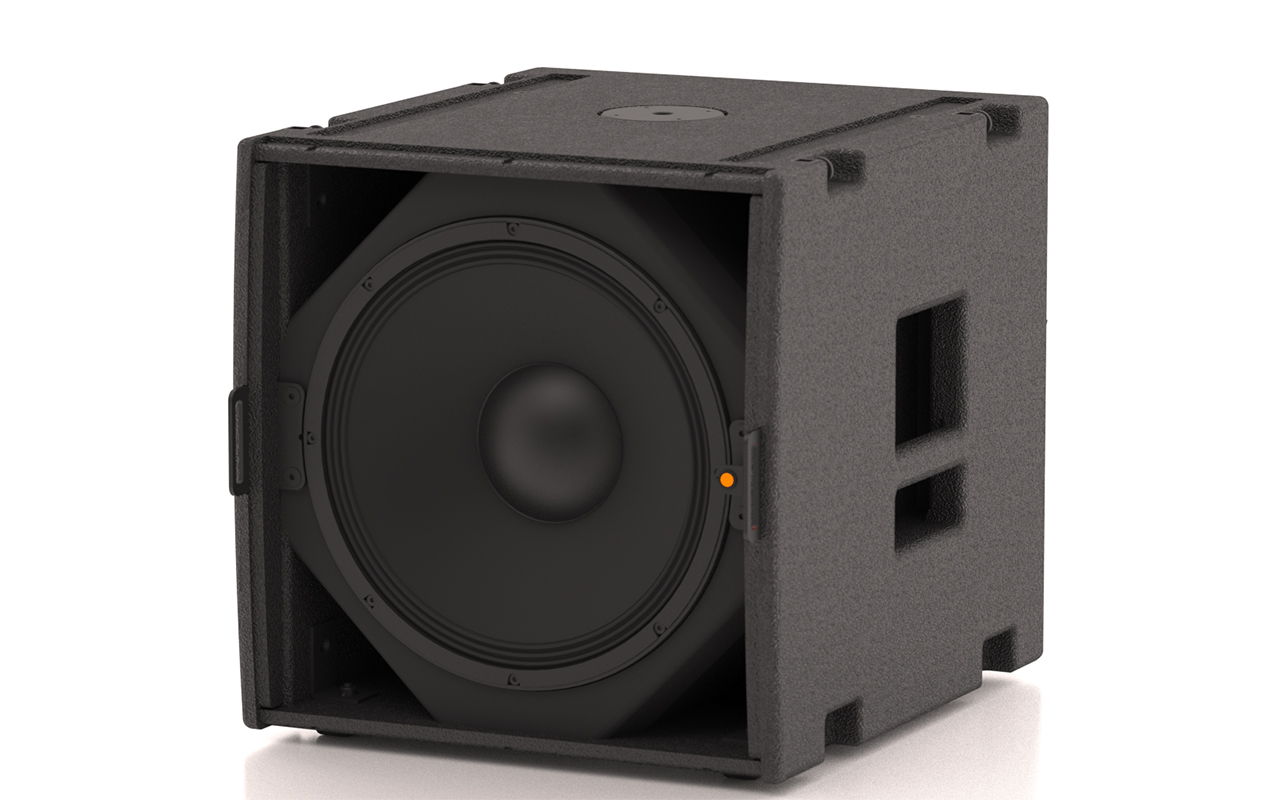

Drive Unit: 1 x 15" (380mm)/4 " (100mm) Voice Coil, Extra Long Stroke, High Efficiency Ferrite Magnet Unit

Power Rating: 800W (AES), 3200W (Peak)

Coverage Angle: All-pointing, multiple MSXs can form a heart shape Directional Array

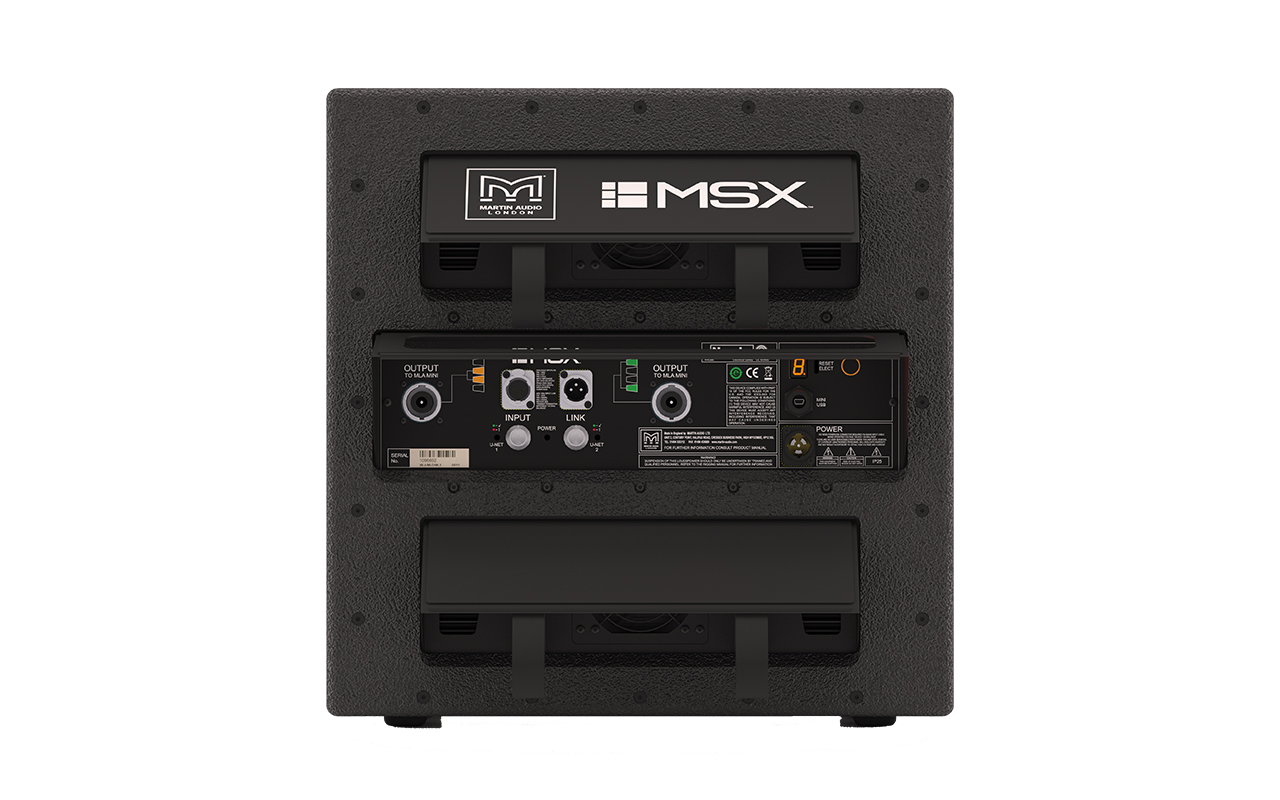

Audio Input Interface: XLR Female Input, XLR Male Link Output

Analog Input Impedance: 20kΩ (balanced ground)

Maximum Analog Input Level: 6.15Vrms (+ 18dBu), Overvoltage Protection

AES/EBU Impedance: 110Ω (balanced), Receiver and Transmitter

Internal Processing: Multi-channel DSP, 10 PEQ/Shelved Filters per channel; High-pass and Low-pass filters up to 48dB/Oct; FIR filter on MLA Mini channel; Delay up to 1 second; Limiting with Amplifier Output Current Monitoring

Network Interface: IP68 Class 8-Pin Interface, Fast Release

Network Protocol: U-NET

Amplifier Module Type: 9-Channel Switched Mode, Class D Amplification

Amplifier Module Peak Output Power: Total 7000W: 1400W MSX (or other 4Ω ultra-low frequency speakers); 700W MLA Mini LF x 4; 700W MLA Mini HF x 4

Amplifier Module Interface: 2 x NL8 Output to MLA Mini x 4

Amplifier Module Average Efficiency: 85%

Amplifier Module Cooling: 2 x built-in temperature-controlled fans, 1 x built-in low-speed blowers, 1 x external temperature-controlled fans

Amplifier module Maximum ambient temperature: Full power output 45 ° C (113 ° F)

Power supply type: Switched mode, fixed frequency PFC

AC input Operating range: 100 - 240V~ AC, 50 - 60Hz

Power factor: > 0.95

Nominal power consumption: 900W

Power interface: Neutrik ® Powercon True1

Cabinet : Multi-layer birch with extensive support

Top coat: Black PU textured coating

Mesh cover: Black HEX porous steel mesh accessory: two slides on the base with a mating channel at the top; M20 top-mounted threaded plate can be used for MLA Mini support bars; one-piece flight hanger for up to 4 MSXs; large handles on both sides; two front-mounted wheel lock plates; optional windshield

IP rating: Indoor (without windshield); IP 25 (with windshield)

Dimensions (W × H × D): 500mm x 510mm x 575mm (675mm, open vent)

Weight: 58kg (128lb) without wheel; 65kg (143lb) with wheel
