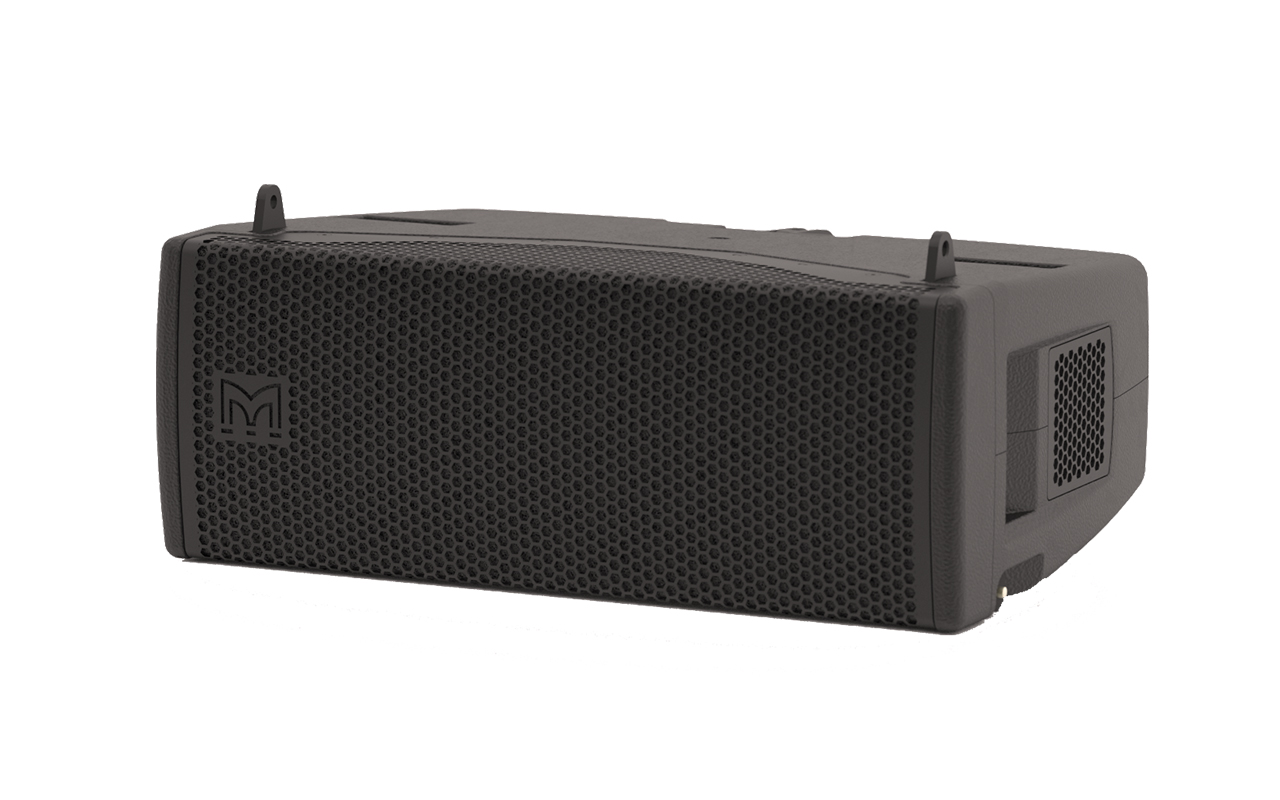

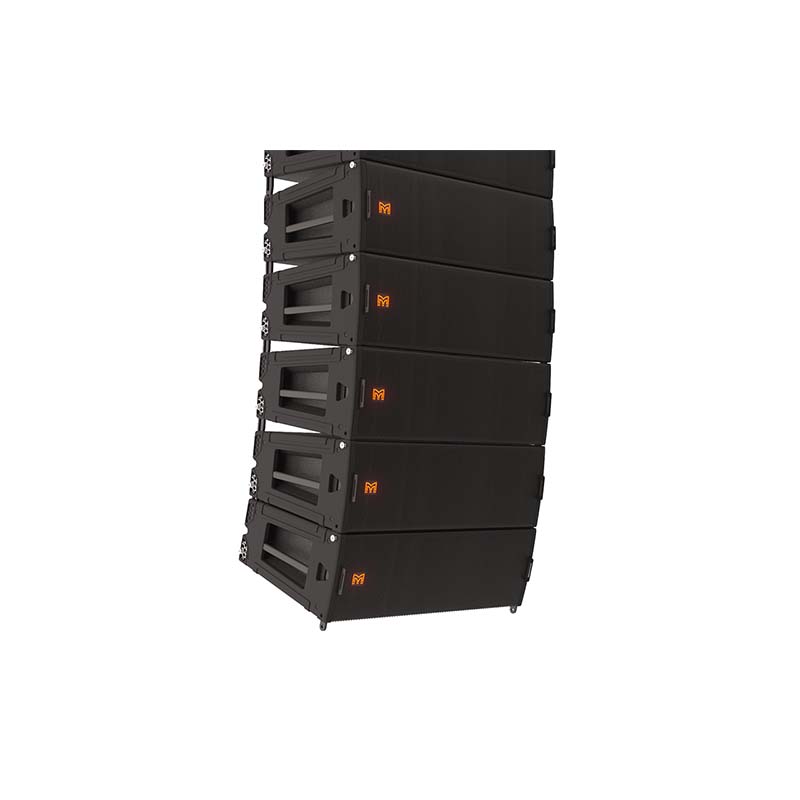

Martin Audio's revolutionary multi-cellular loudspeaker array - MLA technology is reshaping how loudspeaker arrays are configured and controlled. It combines unmatched listener coverage and consistency with exceptional fidelity. The ultra-compact MLA Mini brings this revolutionary technology to an exceptionally wide range of fields. The MLA Mini's small size and light weight make it the choice for small to medium-sized systems such as portable theaters, banquet halls, chapels, and concert halls. Audiences can get sound feedback from any space. MLA technology is the only technology on the market designed to optimize multiple sound targets. MLA Mini not only produces a more uniform sound field in the listening area, but also greatly reduces the impact of the room.

Young Speaker Type: Two-way cellular drive unit, array assembly, drive unit driven by MSX mini-ultra-low speaker power module

Frequency Response: 76Hz-18kHz, ± 3dB (-10dB@63Hz

Maximum Sound Pressure Level (1 x MLA Mini): LF: 127dB (continuous), 130dB (peak); HF: 122dB (continuous), 132dB (peak)

Maximum Sound Pressure Level (4 x MLA Mini): LF: 139dB (continuous), 142dB (peak); HF: 132dB ( Continuous), 142dB (peak)

Drive Unit: LF: 2 x 6.5 " (165mm) Waveform Diaphragm/2" (50mm) Edge Winding CCAW Voice Coil, Neodymium Magnetic Drive Unit, Reflective Loaded

HF: 3 x 1.4 " (35mm) Aluminum Dome/1.4" (35mm) Voice Coil, Neodymium Magnetic Compression Drive Unit for Constant Directional Waveguide

Power Rating: LF: 300W (AES), 1200W (peak); HF: 90W (AES), 360W (peak)

Coverage Angle: Horizontal 100º (-6dB), 125º (-10dB); Vertical 10 ° (-10dB)

Crossover Point: 1.2kHz: Vanishing Point ™ FIR Filter

Audio Input Interface: NL4 Input, Connected to MSX Power Module; LF: 1 +, 1-, HF: 2 +, 2-

Cabinet: Vertical trapezoid with wall angle of 5 °, skeleton steel support, ribbed ABS foam structure

Topcoat: Black Textured Coating

Protective Mesh Cover: Black HEX Porous Steel Mesh with Declon ® Acoustic Cotton Behind the Mesh Cover

Accessories: One-piece flight hanger for up to 16 MLA Minis; ergonomic handles on both sides

IP Rating: IP 25

Dimensions (W × H × D): 500mm x 210mm x 377mm (including flight hanger connectors)

Weight: 13.8kg (30.4 lbs)
