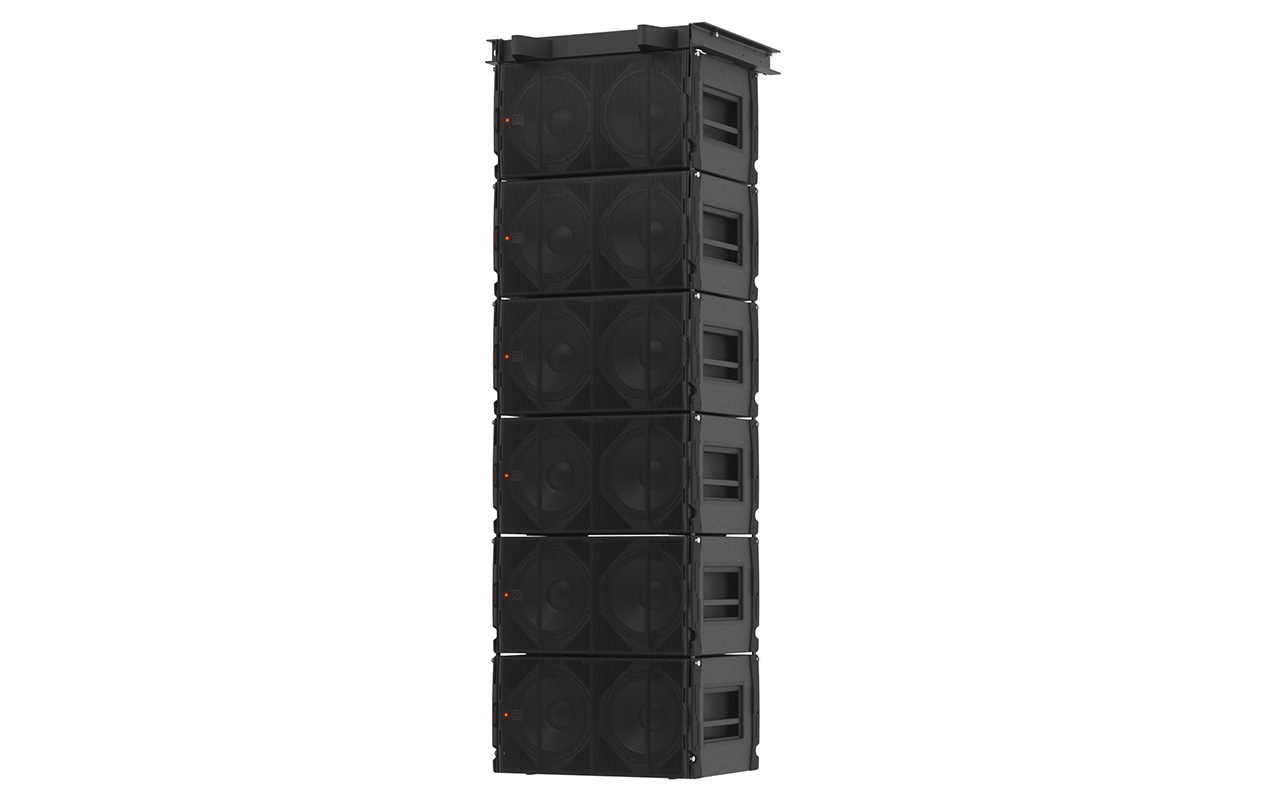

The ground-stacked DSX-F is capable of delivering over 146dB of peak output at a half-space of 1m and achieves extremely high output levels through this compact enclosure. The DSX-F's high output capability is achieved by incorporating the latest drivers, with an onboard Class D amplifier module delivering 6kW of peak power. Its two reflection-loaded 18-inch (450mm)/4-inch (100mm) drive units perfectly balance low-frequency extension and shock.

Sound Type: Dual 18 "Reflective Loaded Ultra Low Speakers

Frequency Response: 35Hz-150Hz, ± 3dB

Maximum Sound Pressure Level: 138dB (continuous), 146dB (peak)

Drive Unit: 2x18"/4 " (100mm) Voice Coil, Extra Long Stroke, High Efficiency Ferrite Magnet Unit

Power Rating: 2400W (AES), 9600W (peak)

Coverage Angle: Array Digital Control

Audio Input Interface: XLR Female Input, XLR Male Input Link Output

Analog Input Impedance: 20kΩ (balanced ground)

Maximum Analog Input Level: 6.15Vrms (+ 18dBu), Overvoltage Protection

AES/EBU Impedance: 110Ω (balanced), Receiver and Transmitter

Internal Processing: Single Channel DSP, 10 PEQ/Shelf Filters for Network Control; High Pass and Low Pass Filters up to 48dB/Oct; Delay up to 1 second; Limiter with Amplifier Output Current Monitoring

Network Interface: IP68 Class 8-Pin Interface, Fast Release

Network Protocol: U-NET

Amplifier Module Type: Single Channel Switched Mode, Fixed Frequency

Amplifier Module Peak Output Power: 6000W

Amplifier Module Average Efficiency: 85%

Amplifier Module Cooling: 2 x Built-in Temperature Controlled Fans, 1 x Built-in Low Speed Blower, 1 x External Temperature Controlled Fans

Amplifier Module Maximum Ambient Temperature: Full Power Output 45 ° C (113 ° F)

Power Type: Switched Mode, Fixed Frequency PFC

AC Input Operating Range: 100 - 240V~ AC, 50 - 60Hz

Power Factor: > 0.95

Nominal Power Consumption: 900W

Power Interface: 16A IEC309 (Ceeform), IP44 rated (IP67 rated when used with the power distribution equipment included with the system)

Cabinet: Multi-layer birch with extensive support

Top coat: Black PU textured coating

Mesh cover: Black HEX porous steel mesh

Accessories (except DSX accessories - unless noted): Rear casters are replaced by front hubs; four proprietary flight hanging points and latches that can be easily plugged and unplugged Side-mount slides replaced by four interlocking rubber side cheeks; DSX-F transport cover with integrated plywood cover

IP rating: IP 25

Dimensions (W × H × D): 1125mm x 595mm x 847mm (1027mm, vents open)

Weight (without wheels): 147.6kg (325 lbs)
