optical system

Light source: R/G/B/W four-color LEDs

Color temperature: 2700K-8000K, adjustable color temperature

Light source lifespan: 50000 hours

Color rendering index: Ra can reach 98, R9 can reach 96, R15 can reach 97



Color system

RGBW color mixing system



effect

Zoom range: Beam angle: 115 °, Spot angle: 160 °

Dimming: 0-100% linear dimming

Strobe: The highest frequency can reach 25Hz, and synchronous flicker, pulse flicker, and asynchronous flicker can be selected

GAMMA value: 2.0/2.2/2.4/2.6/2.8

Refresh rate: 32KHz

Scene effects: Six LED light boards are individually controlled for different scene effects, with 11 built-in scene effects (flames, police cars, stage lighting, tungsten filament lights, flashing fluorescent lights, paparazzi, processing, TV, welding, fireworks, lightning)



protection grade

IP20



display

display



software

Built in macro effects

Upgrade through DMX data cable

Functions such as changing the DMX address code and resetting the machine can be completed from the console

Display the usage time of lighting fixtures and light sources

Control mode: DMX512/Manual

2 channel modes: 36/61 international standard channels



control

Input signal isolation protection function

High temperature automatic protection

RDM protocol



Electrical parameters

Power Supply: AC100-240V, 50/60Hz

Whole lamp power: 300W



Dimension

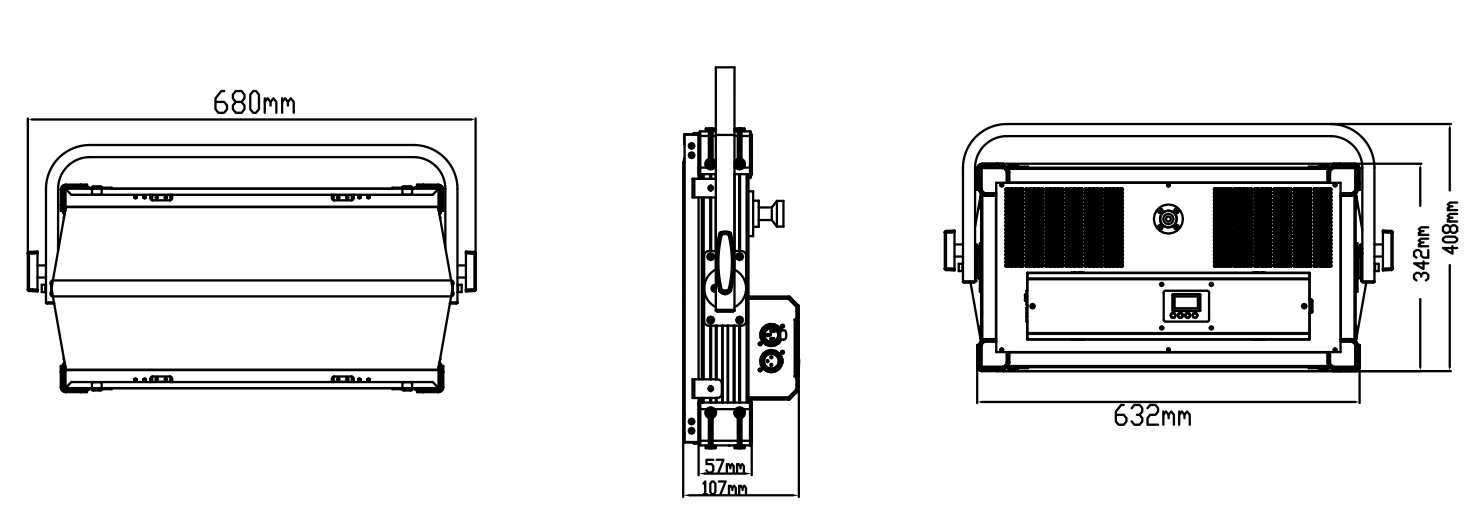

Product size: 680x408x107mm

Packaging size (cardboard box): 800x500x190mm

Net weight: 11.6 kg

Gross weight (cardboard box): 12.5 kg



other

Accessories: Bracket, optional accessories (four leaf door, honeycomb cover, light hook, magic leg mounting rod)

Optional version: CW+WW,FW,CW,WW

The product parameters and images are for reference only and are subject to change without prior notice. The actual product shall prevail, and our company reserves the right of final interpretation.
