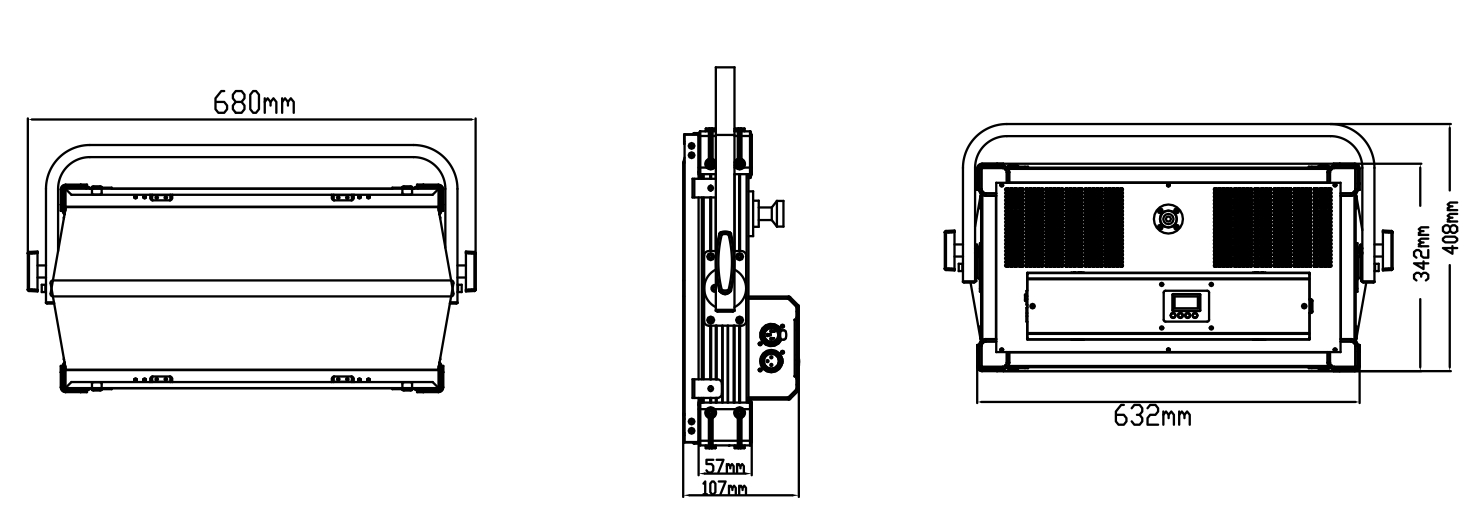

Dimension diagram

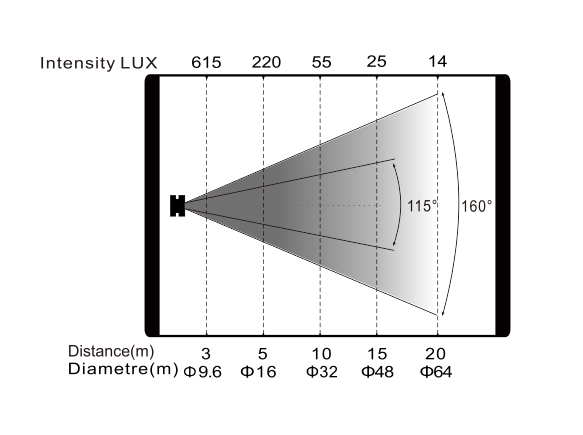

Illuminance diagram

optical system
light source: R/G/B/W four-color LEDs
color temperature: 2700K-8000K color temperature adjustable
light source life: 50000 hours
color rendering index : Ra up to 98, R9 up to 96, R15 up to 97

color system
RGBW color mixing system

effect
Zoom range: beam of light angle: 115 °, light spot angle: 160 °
Dimming: 0-100% linear dimming
Strobe: up to 25Hz, can choose synchronous strobe, pulse strobe, asynchronous strobe
GAMMA value: 2.0/2/2.6/2
Refresh rate: 32KHz
Scene effect: six LED light boards are individually controlled, can do different scene effects, built-in 11 scene effects (flame, police car, stage lights, tungsten lamps, fluorescent lights flashing, paparazzi, processing, TV, electric welding Fireworks, lightning)

protection level
IP20

display
Display

Software
Built-in macro effect
Upgrade through DMX data cable
Can complete the change of DMX address code, machine reset and other functions from the console
Display the use time of lamps and light sources
Control mode: DMX512/manual
2 channels Mode: 36/61 international standard channels

control
input signal isolation protection function
high temperature automatic protection
RDM protocol

electrical parameters
Power supply: AC100-240V, 50/60Hz
Whole lamp power: 300W

Dimension weight
Product size: 680x408x107mm
Packaging size (carton): 800x500x190mm
Net weight: 11.6 kg
Gross weight (carton): 12.5 kg

other
Accessories: bracket, optional accessories (four-leaf door, honeycomb cover, light hook, magic leg mounting rod)
Optional versions: CW + WW, FW, CW, WW
