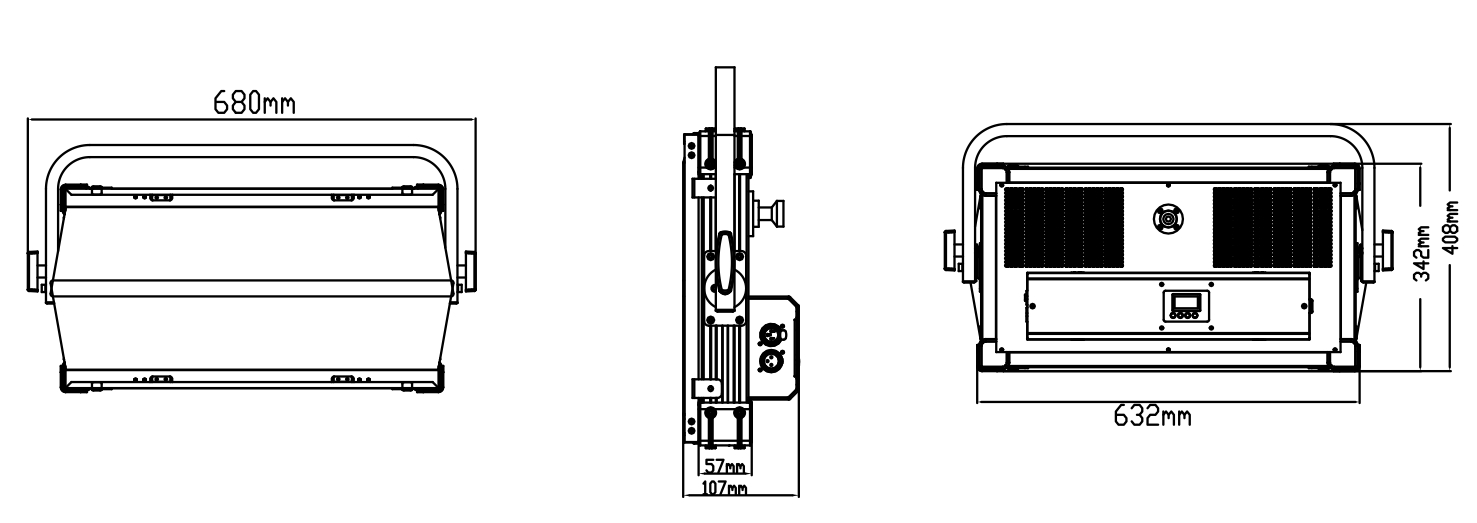

Dimension Chart

Illuminance Chart

optical system
light source: high and low color temperature white LED lamp beads
color temperature: 2700K-8000K color temperature adjustable
light source life: 50000 hours
Color rendering index: Ra up to 98

color system
CW, WW color mixing

effect
Zoom range: beam of light angle: 115 °, light spot angle: 160 °
Dimming: 0-100% linear dimming
Strobe: 1-25Hz, optional synchronous strobe, pulse strobe, asynchronous strobe
GAMMA value: 2.0/2/2.6/2
Refresh rate: 32KHz
Scene effect: six LED light boards are individually controlled, and different scene effects can be done

Protection class
IP20

display
display

Software
Built-in macro effect
Upgrade through DMX data cable
Change DMX address code, machine reset and other functions from the console
Display the use time of lamps and light sources
Control mode: DMX512/manual
2 channel modes: 7/22 international standard channels

control
input signal isolation protection function
high temperature automatic protection


electrical parameters
power supply : AC100-240V, 50/60Hz
Whole lamp power: 300W

Dimension weight
Product size: 680x408x107mm
Packaging size (carton): 800x500x190mm
Net weight: 11.6 kg
Gross weight (carton): 11.34 kg
other
Accessories: cover (honeycomb cover), four-leaf door, boom (light hook), magic leg mount
Optional versions: CW + WW, FW, CW, WW
