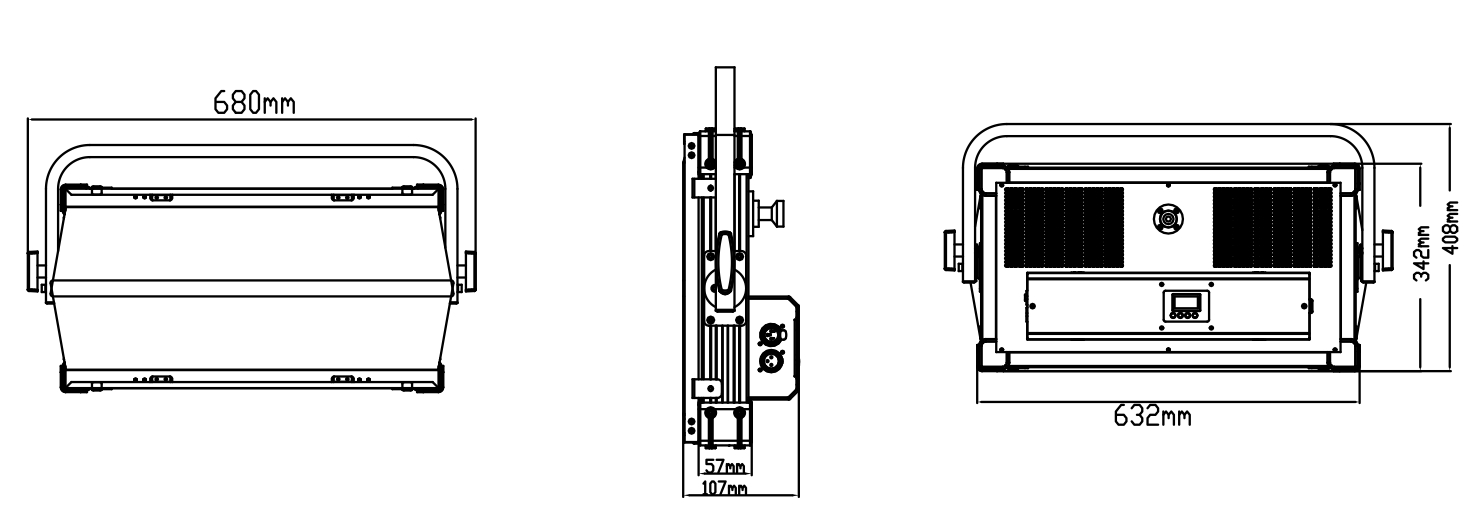

Dimension Chart

Illuminance Chart

optical system
light source: RGBW monochromatic light source
color temperature: 2700K-8000K
light source life: 50000 hours
color rendering index: Ra up to 98, R9 up to 98, R15 up to 96

color system
RGBW color mixing system

effect
Zoom range: beam of light angle: 115 °, light spot angle: 160 °
Dimming: 0-100% linear dimming
Strobe: 1-25Hz, selectable synchronous strobe, pulse strobe, asynchronous strobe
GAMMA value: 2.0/2/2.6/2
Refresh rate: 32KHz

Protection level
IP20

display
Display

Software
Built-in macro effect
Upgrade through DMX data cable
You can change the DMX address code from the console, machine reset and other functions
Display the use time of lamps and light sources
Control mode: DMX512/manual

Control
input signal isolation protection function
high temperature automatic protection
RDM protocol

electrical parameters
power supply: AC100-240V, 50/60Hz
whole lamp power: 300W

Dimension weight
Product size: 680x408x107mm
Packaging size (carton): 800x500x190mm
Net weight: 11.6 kg
Gross weight (carton): 11.34 kg

Other
Accessories: cover (honeycomb cover), four-leaf door, boom (light hook), magic leg mount
Optional versions: CW + WW, FW, CW, WW
