optical system

Stained LED: 1.5WX384pcs RGB LED beads, each divided into 12 blocks for a total of 48 area controls

Strobe strip LED: CW 6500K, 5Wx288 pieces, 12x3 area control

Light source lifespan: 50000 hours Average lifespan of light source*

*The testing conditions in the laboratory may vary due to various factors

Color rendering index: 76

Luminous flux:

ALL LED: 90000lm

CW LED: 38000lm

RGB LED: 15000lm



scan

Vertical scanning: 190°



Color system

RGB color mixing system

Built in Lee/Roso colors



effect

Beam angle: 120 °

Dimming: 0-100% linear dimming

Strobe: The highest frequency can reach 25Hz, and synchronous flicker, pulse flicker, and asynchronous flicker can be selected

Strobe effect: random flash, single flash

GAMMA values: 2.0, 2.2, 2.4, 2.6, 2.8, a total of 5 dimming curves

Refresh rate: adjustable from 4KHz to 32KHz

Integrating strobe lights, colored lights, and audience lights, it can create a free graphic matrix effect, including 48 colored blocks and 12x3 strobe blocks



protection grade

IP65



display

display

Reset detection settings



software

Built in macro effects

Upgrade through DMX data cable

Functions such as changing the DMX address code and resetting the machine can be completed from the console

Display the usage time of lighting fixtures and light sources

Control mode: DMX512/Manual

3 channel modes: 25/18/197 international standard channels

High temperature automatic protection



control

Art Net, Kling Net control

RDM protocol



Electrical parameters

Power Supply: AC100-240V, 50/60Hz

Instantaneous power: maximum 1300W

Constant power consumption: 500W

RGB block: 500W



Dimension

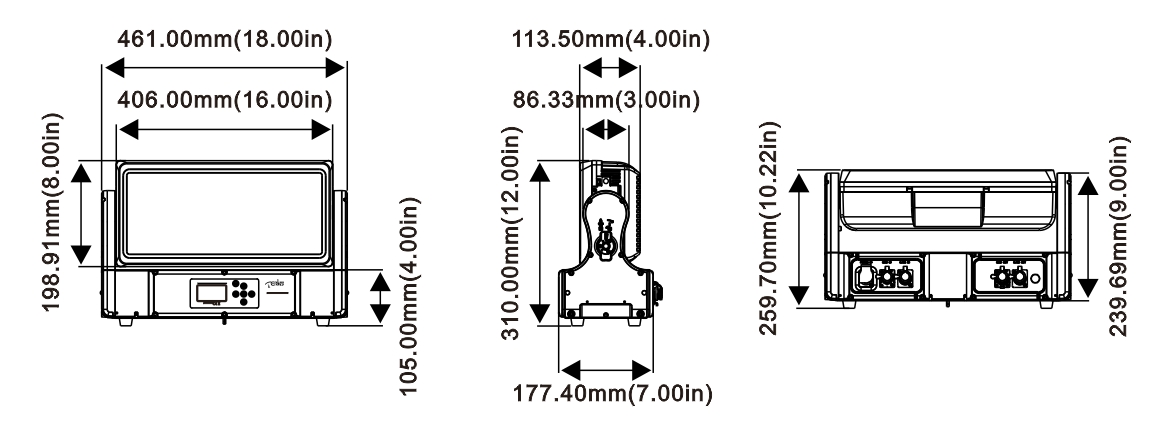

Product size: 461x177x310mm

Packaging size (cardboard box): 540x390x295mm

Net weight: 13.5kg

Gross weight (cardboard box): 16.5kg



optional

Optional electronic atomization

Optional magnetic color swatches/grilles

Optional LED array to meet different preferences

The product parameters and images are for reference only and are subject to change without prior notice. The actual product shall prevail, and our company reserves the right of final interpretation.
