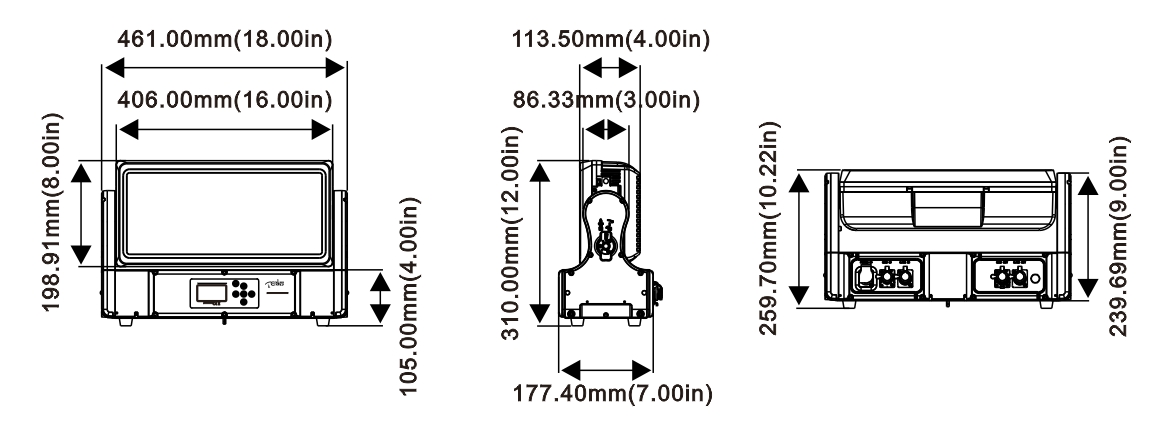

Dimension Chart

optical system
dyed LED: 1.5WX384pcs RGB LED beads, each divided into 12 blocks of 48 zones control
Strobe band LED: CW 6500K, 5Wx288, 12x3 zone control
Light source life: 50,000 hours, average light source life *
* Laboratory test conditions may vary due to various factors
Color rendering index: 76
Luminous flux:
ALL LED: 90000lm
CW LED: 38000lm
RGB LED: 15000lm

scan
vertical scan: 190 °

color system
RGB color mixing system
built-in Lee/Rosco color

effect

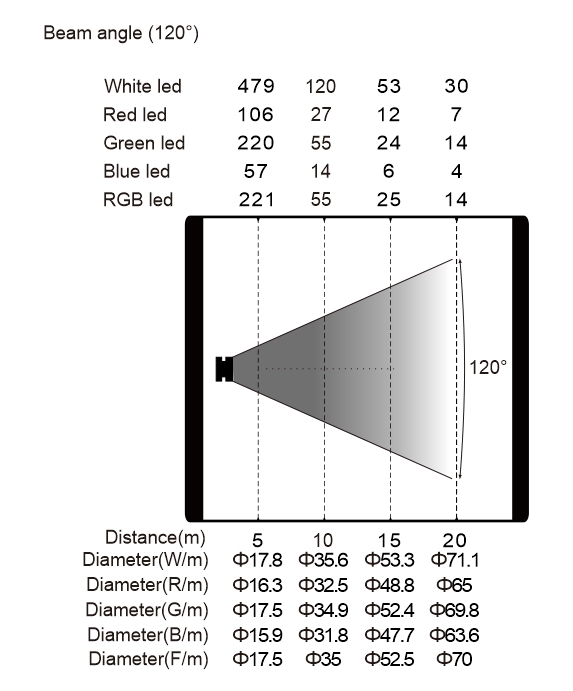

beam of light angle: 120 °
Dimming: 0-100% linear dimming
Strobe: up to 25Hz, optional synchronous strobe, pulse strobe, asynchronous strobe
Strobe effect: random flash, single flash
5 dimming curves in total
Refresh rate: 4KHz to 32KHz adjustable
Set strobe, dye and audience lights for Integrated, can do free graphics matrix effect, including 48 staining blocks and 12x3 strobes

protection level
IP65

display
Display
Reset detection settings

Software
Built-in macro effect
Upgrade through DMX data line
Change DMX address code from console, machine reset and other functions
Show Lighting and light source usage time
Control mode: DMX512/manual
3 channel modes: 25/18/197 international standard channels
High temperature automatic protection

control
Art-Net, Kling Net control
RDM protocol

electrical parameters
Power supply: AC100-240V, 50/60Hz
Instantaneous power: maximum 1300W
Constant power consumption: 500W
RGB block: 500W

Dimension weight
Product size: 461x177x310mm
Packaging size (carton): 540x390x295mm
Net weight: 13.5kg
Gross weight (carton): 16.5kg

optional
optional electronic atomization
optional magnetic color chip/grille
optional Select LED arrays to suit different preferences
