optical system

Light source: high-power 290W LED module

Color temperature: 6500 ± 500K

Light source lifespan: 20000 hours

Color rendering index: CRI ≥ 70 (optional high rendering index version lamp Ra ≥ 90)

Zoom range: 10 ° -40 °



Color system

1 color palette (7 colors+white circle)



Pattern system

1 rotating pattern disc (7 colors+white circle)

1 dynamic effect disk



effect

focus adjustment

Dimming: 0-100% linear dimming

Strobe: The frequency can reach up to 25Hz, and pulse strobe can be selected as an option

GAMMA values: 2.0, 2.2, 2.4, 2.6, 2.8, suitable for different visual linearity requirements

Refresh rate: 900Hz-25000Hz



protection grade

IP66



software

Upgrade through DMX data cable

You can change the DMX address code and reset the machine from the console

Display the usage time of the lighting fixtures

Control mode: DMX512/Manual

2 channel modes: 10/15CH



control

DMX control

RDM protocol



Electrical parameters

Power Supply: AC100-240V, 50/60Hz

Whole lamp power: 300W



mounting bracket

Bracket type: single bracket, double bracket (optional)

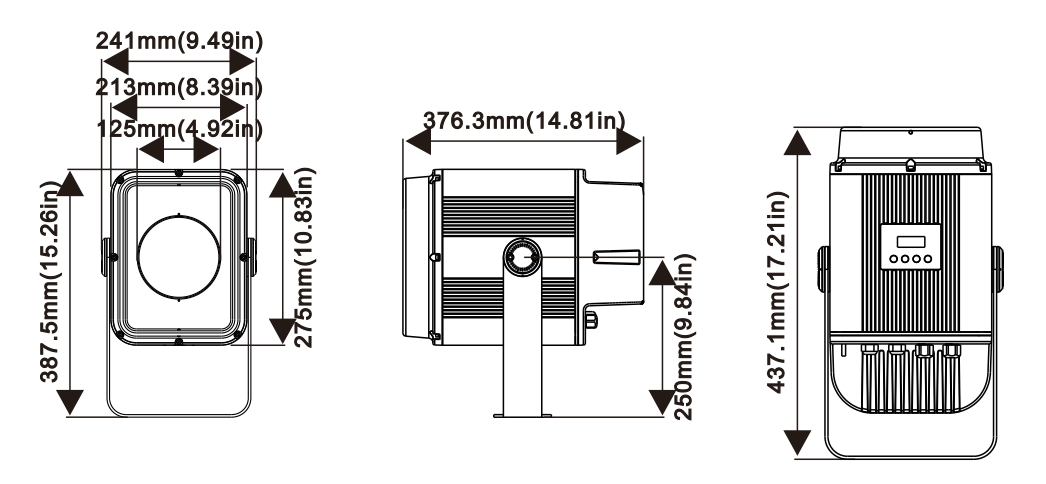

Size and weight (lamp body)

Whole lamp product size: 241x376.3x437.1mm

Packaging size (cardboard box): 565x300x370mm

Net weight (lamp body): 10.8 kg

Gross weight (cardboard box): 11.4 kg

The product parameters and images are for reference only and are subject to change without prior notice. The actual product shall prevail, and our company reserves the right of final interpretation.
