Optical System
Light Source: High Power 290W LED Module
Color temperature: 6500 ± 500K
Light source life: 20000 hours
Color rendering index: CRI ≥ 70 (optional high display version luminaire Ra ≥ 90)
Zoom range: 10 ° -40 °

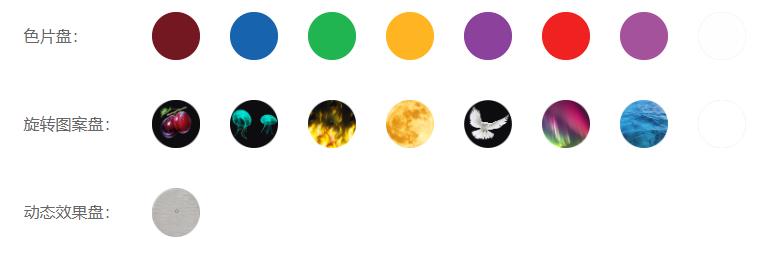

Color system
1 color disc (7 colors + white circle)

pattern system
1 rotating pattern disc (7 colors + white circles)
1 dynamic effect disc

effect
focusing
dimming: 0-100% linear dimming
Strobe: frequency up to 25Hz, optional pulse stroboscopic
GAMMA value: 2.0, 2.2, 2.4, 2.6, 2.8, adapt to different visual linear requirements
refresh rate: 900Hz-25,000Hz

protection level
IP66

software
Upgrade through DMX data cable
You can change the DMX address code from the console, machine reset function
Display the use time of the lamp
Control mode: DMX512/manual
2 channel modes: 10/15CH

control
DMX control
RDM protocol

electrical parameters
power supply: AC100-240V, 50/60Hz
Overall Lamp Power: 300W

Mounting Bracket
Bracket Type: Single Bracket, Double Bracket (Optional)

Size Weight ( Lamp body)
Whole lamp product size: 241x376.3x437.1mm
Packaging size (carton): 565x300x370mm
Net weight (lamp body): 10.8 kg
Gross weight (carton): 11.4 kg
