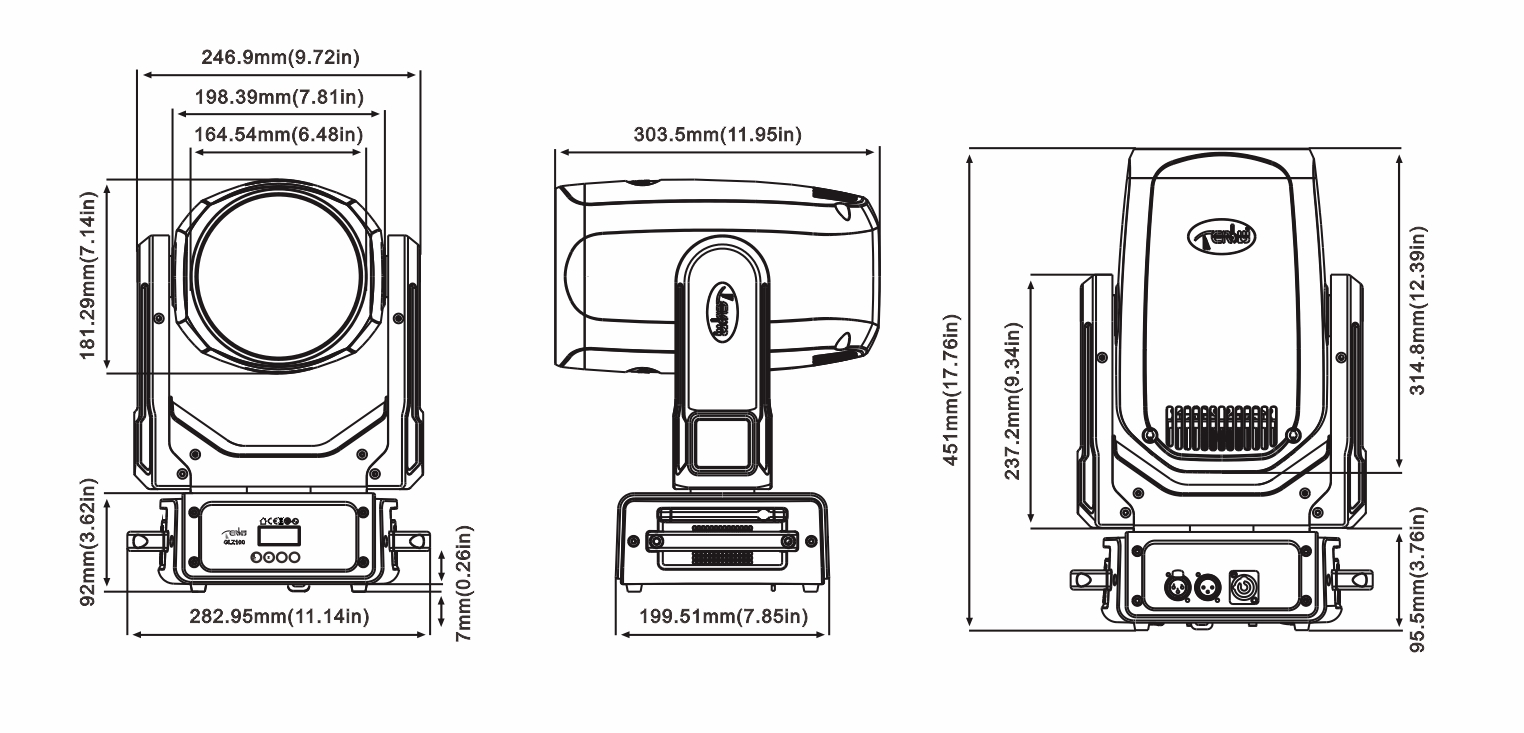

Dimension Chart

Illuminance Chart

optical system
light source: 100W laser LED hybrid light source
color temperature: 7300K
light source life: 12,000 hours
color rendering index: ≥ 70
Illumination: 307200lux@5m

scan
Horizontal scan: stepless rotation (16bit precision scan)
Vertical scan: 270 ° (16bit precision scan)
Reset function with automatic error correction

color system
1 color plate: 17 color plates + white light, half-color effect, color plates can be positioned arbitrarily, rainbow effect with two-way rotation

pattern system
1 fixed pattern disc: 27 fixed pattern pieces + white circle, with pattern dithering function

effect
beam of light angle: 1.5 °
2 prisms: 8 prism and 12 prism, can be rotated in positive and negative directions, and has prism positioning function, 16 macro functions
Optional atomization system
Dimming: 0-100% linear dimming
Strobe: up to 25Hz, and can choose random strobe and pulse strobe

protection level
IP20

Display
Display screen: with rechargeable battery, you can enter the menu without power on to set the address code and other settings; after 15 seconds of standby, the button will automatically lock the setting to prevent misoperation. After long pressing the menu button for 10 seconds, activate the button
Reset detection settings: Long press the left and right keys to lock the horizontal and vertical scanning reset, which can support the reset detection of lamps in the aircraft case

Software
7 built-in processes to choose from
Upgrade through DMX data cable
Change DMX address code from console, machine reset and other functions
Display lighting and light source usage time
3 channel modes: 18/16/25 international standard channels

Control
input signal isolation protection function
high temperature automatic protection
RDM protocol


electrical parameters
power supply: AC100-240V, 50/60Hz
whole lamp power: 160W


Dimension weight
Product size: 283x199.5x451mm
Packaging size (carton): 365x335x555mm
Net weight: 10.5 kg
Gross weight (carton): 13.5 kg
